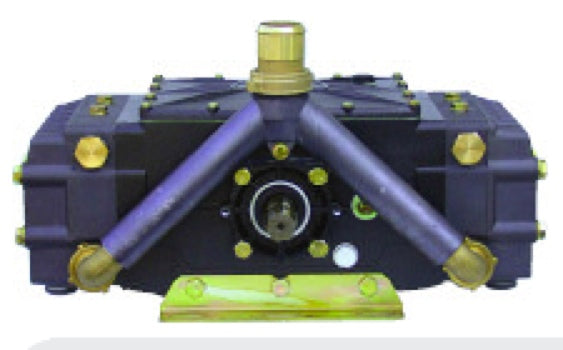

Udor GAMMA-62B/CC Plunger Pump

Description

Udor GAMMA-62B/CC Plunger Pump

16 GPM, 1500 PSI, 15 HP Electric Power Requirement.

Three Cylinder Plunger Pump of Anodized Aluminum, Brass Manifolds, Construction with Ceramic Plungers and Dual 1-3/8″, 6-Spline Male Shaft. Max RPM – 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Features:

•Large Capacity Vented Oil Bath Crank Case

•Solid Ceramic Plungers

•Heat Treated Crank Shaft

•Stainless Steel Check Valves

•1-1/4″ Hose Barb Inlet (3-Cylinder), 2″ Hose Barb Inlet (6-Cylinder)

•(2) 3/4″ Outlets (3-Cylinder), (4) 3/4″ Outlets (6-Cylinder)

•Industrial Quality Tapered Roller Bearings

•Heavy Duty Bronze Connecting Rods

•Max. Fluid Temp. 160° F

•Replaceable PTFE Coated Body Guides
